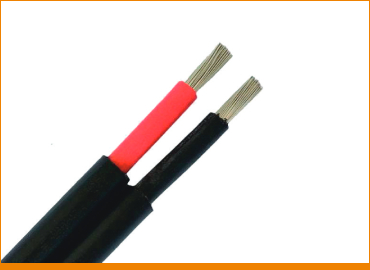

What are Photovoltaic Solar Cables?
Photovoltaics have long been an important feature of renewable energy systems. It consistently and reliably adds substantially to the energy transition required to adequately address the environmental challenges that are on the rise. From large-scale energy-supply systems to single-family home systems, photovoltaics are extensively adopted.
As a result, these Photovoltaic Solar Cables must therefore be composed of a long-lasting, high-quality material. They are continually exposed to the deteriorating elements of the environment such as wind and rain. Their components must be highly waterproof and should be able to safeguard against heat, wind, and cold in order to provide reliable performance. These Solar Cables also need to be rodent-proof.
Why choose Photovoltaic Solar Cables by Sri Padmavathi Cables?
Sri Padmavathi Cables' Photovoltaic Solar Cables are used to link photovoltaic power supply installations. They are dedicated to the direct current (D.C.) side of solar systems, with a minimum D.C. voltage of 1.5kV.
Padmavati Cables is one of the best Photovoltaic Solar Cables manufacturer, Photovoltaic Solar Cables exporter, Photovoltaic Solar Cables supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this Photovoltaic Solar Cables in all over countries. If you want this products please quote Now !
Standards: DIN VDE 0295 / IEC / EN 60228, TUV 2 PFG / 1169 / 08.2007
LSZH: IEC 61034, EN 52067-2, IEC 60754
Ozone: EN 50396
Voltage Grade: AC: 600/1000V, DC: 900 /1500V
Conductor: Flexible Annealed Tinned Copper Class-5 IS 8130/2013
Insulation: Extruded Halogen Free- Cross-linked Compound
Sheath: Extruded Halogen Free- Cross Linked Compound/ UV Resistant- ST2 Type PVC
Conductor Temperature Rating Ambient: - 40 to + 90°C
Maximum Conductor Temperature Rating: +120°C (for 20000 H)
Test Voltage: 6.5KV AC According to EN 50395
Application:
These Cables are Especially Designed for use in Photovoltaic Applications. They Provide the Optimal Cable Connection between the Solar Cells and from the Solar Cells to the Inverter or DC Main Cable.
These Cables are Suitable for outdoor Ground and Roof Mounted Systems – Though not Suitable for Direct Laying Under the Earth. They are also Suitable Laying Indoors and in Fixed Pipe Installation.
Thanks to its Halogen free, Flame Retardant and Low Smoke Properties, These Cables are also Safe to Care the Health of Inhabitants in Case of Fire.
| No. of Cores & Nom. Cross Section Area( sq mm) | Overall DIA Nom. in (mm) | Current Carring Capacity (Amp) | Approx. Weight ( kg/km) | MV/AM |
|---|---|---|---|---|
| 1 X 2.5 | 4.5 | 41 | 39 | 19 |
| 1 X 4.0 | 5.2 | 55 | 57 | 12 |
| 1 X 6.0 | 5.9 | 70 | 79 | 7.9 |
| 1 X 10.0 | 6.9 | 98 | 122 | 4.7 |
| 1 X 16.0 | 8.3 | 132 | 181 | 2.9 |
| 1 X 25.0 | 9.7 | 176 | 273 | 1.85 |
| 1 X 35.0 | 11 | 218 | 364 | 1.35 |
| 1 X 50.0 | 13.2 | 276 | 520 | 1 |
| 1 X 70 | 15.4 | 347 | 713 | 0.73 |
| 1 X 95 | 17.4 | 416 | 930 | 0.56 |
| 1 X 120 | 20.1 | 488 | 1191 | 0.47 |
| 1 X 150 | 232.5 | 566 | 1514 | 0.41 |
| 1 X 185 | 26 | 644 | 1828 | 0.36 |
| 1 X 240 | 26.8 | 775 | 2324 | 0.31 |
